Description

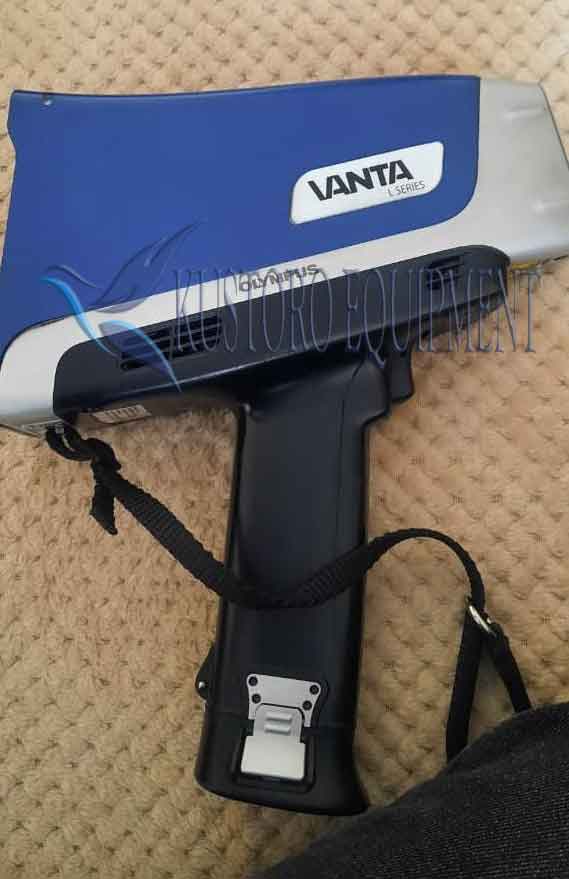

Olympus Vanta L Series Metal Analyzer

Olympus Vanta L Series handheld XRF analyzers are rugged and built for analytically demanding applications in the harshest environments. Vanta analyzers are IP rated for protection against dust and water, are drop tested, and built to withstand extreme ambient temperatures.

Vanta analyzers provide fast, accurate elemental analysis. Each device features Olympus’ Axon TechnologyTM, a revolution in XRF signal processing that provides accurate, repeatable results for greater productivity and a fast return on investment.
Vanta analyzers feature an intuitive interface so new users can work with the device with minimal training.

Olympus Vanta L Series Handheld XRF Analyzer is most advanced handheld X-ray fluorescence (XRF) device and provides rapid, accurate element analysis and alloy identification to customers who demand laboratory-quality results in the field.

Vanta handheld XRF analyzers are built to be tough their rugged and durable design makes them resistant to damage for greater uptime and a lower cost of ownership. L Series is designed for maximum uptime and a lower cost of ownership for reliability in the field. Olympus Vanta XRF Handheld Built Tough for Maximum Uptime.

Olympus Vanta L Series come equipped with:

• Tungsten (W): 35kV anode.
• IP55, solid detector shutter to help prevent detector damage.
• Removable 14.4 V Li-ion battery with hot-swap capability.
• Embedded GPS / GLONASS receiver.
• Manufacturer 3-year warranty.
• 18 V power transformer 100–240 VAC, 50–60 Hz, 70 W max.
• 800 × 480 (WVGA) LCD with capacitive touch screen supporting gesture control.
• The L Series is designed for maximum uptime and a lower cost of ownership for reliability in the field.

What is a handheld XRF analyzer used for?

The ability to take a lab technique into the field with handheld XRF enables the analysis of samples that are too large, unwieldly, or costly to transport to the lab. On-site, portable XRF analysis also provides real-time information for fast decision-making.

What can a handheld XRF analyzer detect?

A handheld XRF analyzer can measure elements from magnesium (Mg) to uranium (U). You can point an XRF analyzer at almost anything and get a result. XRF can test a wide range of industrial materials such as cement or coal, as well as household materials such as jewelry, paint, and consumer goods.

How accurate is handheld XRF?

Vanta™ handheld XRF analyzers are powerful XRF instruments that can measure the elemental composition from magnesium (Mg) to uranium (U), from parts per million to 100%.

Feature Olympus Vanta L Series

Performs in All Environments

Fully functional in temperatures ranging from -14 °F to 122 °F* (-25.5 °C to 50 °C).

IP55 (C and L series) and IP54 (M series and Vanta Element) rated for protection against dust and water intrusion.

Analyze hot samples up to 950 °F (510 °C) using the optional hot heel faceplate.

Detector Protection Olympus Vanta L Series

Automatic eyelid shutter helps prevent costly detector damage (C and M series models).

Olympus Scientific Cloud™ Olympus Vanta L Series

Enables real-time data backups, downloads, and screen sharing.

Instantly update software and firmware.

Fleet management capabilities help you and your team view and access instrument health statistics and GPS location.

Simple Interface Olympus Vanta L Series

Intuitive user interface simplifies alloy identification.

Smartphone-like gesture operation: swipe, flick, and tap.

Customize the home screen buttons for frequently used operations.

Olympus Vanta L Series Easy Data Management

Instantly export analysis results through optional wireless connectivity, the Olympus Scientific Cloud, or a USB flash drive.

Customize data labels and exports with Vanta™ PC software.

The Vanta™ Series

Olympus manufactures Vanta™ X-ray fluorescence (XRF) analyzers to suit a variety of applications depending on your needs. Each Vanta analyzer is engineered for durability and analytical superiority.

L Series

Get the ruggedness, ease of use, and data management features of Vanta analyzers in a cost-effective PIN instrument.

Olympus Vanta L Series Essential for:

• Complying with American Petroleum Institute (API) Recommended Practice (RP) 578—Material Verification
• Program for New and Existing Alloy Piping Systems.
• Detecting sulfidation corrosion susceptibility (API RP 939-C).
• Evaluating flow accelerated corrosion (FAC) susceptibility.
• Discerning residual element corrosion susceptibility in hydrofluoric acid (HF) alkylation units Cloud technology enabled.

Specification Olympus Vanta L Series :

Package includes Olympus Vanta L Series

– Olympus Vanta L Series
– 2 Lithium Ion Batteries
– Charger and AC Adapter Cable
– Docking/Calibration Stand
– USB Drive

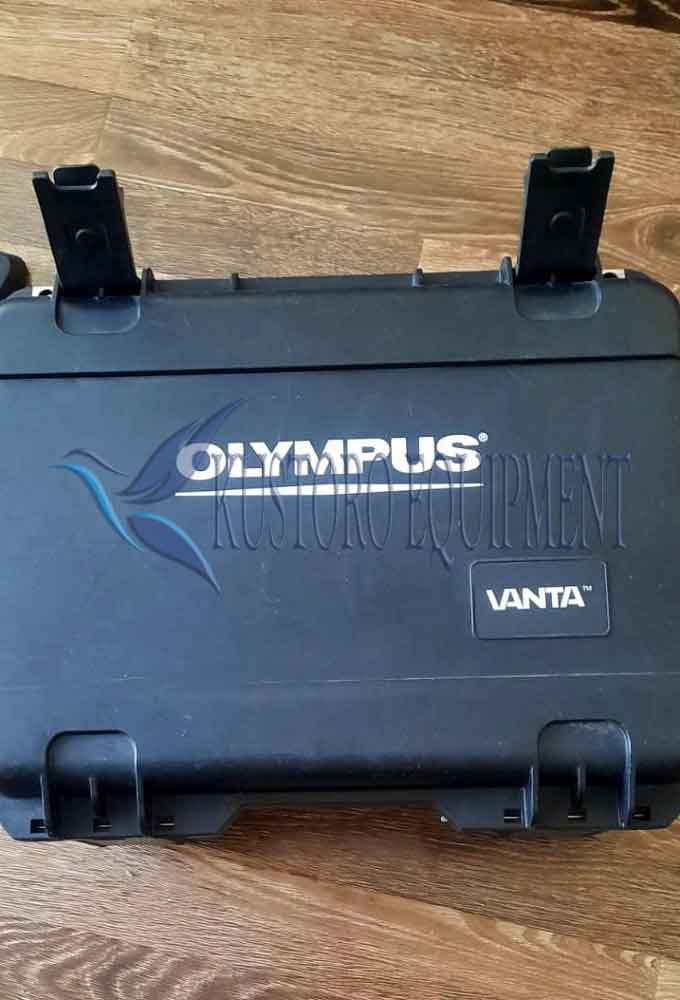

– Hard Transport Case
– 10 pieces of protective windows
– Specifications document & User’s Manual
– 3 years warranty certificate & Warranty Card
