Flir E5-XT Infrared Camera with Extended Temperature Range
$2,000
Model : E5-XT Infrared Camera
Description
Flir E5-XT Infrared Camera with Extended Temperature Range
Flir E5-XT is the perfect tool for diagnosing electrical, mechanical, and building problems, thanks to its 19,200 (160 × 120) pixel infrared detector and expanded, -20°C to 400°C (-4°F to 752°F) temperature range. FLIR MSX® image enhancement provides extraordinary thermal imaging detail, while the built-in Wi-Fi allows users to quickly connect with the FLIR Tools® Mobile app for sharing images and sending reports easily from any location.
Flir E5-XT Thermal Imager includes MSX® technology that provides extraordinary thermal imaging detail. All E Series cameras now come with Wi-Fi connectivity to smartphones and tablets via the FLIR Tools Mobile app makes sharing images and sending reports from any location easier, enabling you to make critical decisions faster. By providing thermal images to help you find hidden problems along with accurate temperature measurements, an Ex-Series camera is the ideal budget-friendly replacement for old-school IR thermometers.
Flir E5-XT camera has medium resolution and is priced well for a handheld thermal camera with a replaceable battery. Now you can afford the ultimate inspection tool. Gain a competitive advantage and take care of more customers. Blow them away with dramatic MSX thermal images that clearly reveal problems from sources of energy loss, moisture intrusion and structural issues to overheating electrical and mechanical equipment.
From the 4800-pixel thermal image clarity of the E4 to the E8’s incredible 320×240 detector with 76,800 pixels, FLIR Ex-Series cameras offer a resolution to fit the target size, working distance, and detail required for your application as well as your budget.
Features Flir E5-XT:
Easy to use
Intuitive, user-friendly interface for measurements in thermal or MSX mode
• Fully automatic and focus-free
• Simple button navigation to on-screen settings, imaging modes, and measurement tools
• MSX adds digital camera detail to IR images for better perspective and interpretation
Conveniently share images and findings
Download images, create reports, and show what you’ve found instantly
• Wi-Fi connectivity to mobile devices via FLIR Tools Mobile app
• Rapid Wi-Fi or USB image transfer for documentation
• Analyze and edit images, and create convincing reports with FLIR Tools
Compact and rugged
Built for portability and use in harsh environments
• Lightweight (1.2 lb / .0575kg) and withstands 2-meter drop test
• Accessory belt pouch included for convenience on-the-go
• 2-year warranty coverage on camera, 5 years
on batteries, 10 years on detector
Additional Flir E5-XT Features
- Temperature range from -20°C to 400°C vs -20°C to 250°C compare to previous Flir E5
- Upgrade 160 × 120 pixels IR Resolution vs 120 × 90 pixels, compare to previous Flir E5
- FLIR Tools reporting and analysis software (free download at Flir website)
- Interested? Please don’t hesitate to call us @0813 2329 3160
- FLIR E5-XT has an IP54 enclosure and easily withstands a 2-meter drop test
- Download standard JPEGS, create reports, and share what you’ve found via a Wi-Fi connection to the FLIR Tools Mobile app
- Automatic and focus-free, with clear on-screen navigation to measurement tools and settings.
Specifications Flir E5-XT:
- IR Resolution
- 160 x 120 pixels
- List of Contents
- • Infrared camera •Hard transport case •Battery (inside camera) •USB cable •Power supply/charger with EU, UK, US and Australian plugs •Printed documentation
- Packaging Size
- 385 x 165 x 315 mm (15.2 x 6.5 x 12.4 in)
- Set-up Commands
- Local adaptation of units, language, date and time formats
- Spectral Range
- 7.5-13 µm
Compliance & Certifications
- Certifications
- UL, CSA, CE, PSE and CCC
Connections & Communications
- AC Operation
- AC adapter, 90-260 VAC input, 5 VDC output to camera
- Interface
- USB Micro: Data transfer to and from PC and Mac device
- WiFi
- • Standard: 802.11 b/g/n • Frequency range: •2400-2480 MHz • 5150-5260 MHz •Max. output power: 15 dBm
Environmental Flir E5-XT
- EMC
- •WEEE 2012/19/EC •RoHs 2011/65/EC • C-Tick • EN 61000-6-3 • EN 61000-6-2 • FCC 47 CFR Part 15 Class B
- Humidity (Operating and Storage)
- IEC 60068-2-30/24 h 95% relative humidity
- Operating Temperature Range
- -15°C to 50°C (+5°F to 122°F)
- Radio Spectrum
- • Standard: 802.11 b/g/n • Frequency range: • 2400-2480 MHZ •5150-5260MHz •Max. output power: 15 dBm
- Shock
- 25 g (IEC 60068-2-27)
- Storage Temperature Range
- •40°C to 70°C (•40°F to 158°F)
- Vibration
- 2 g (IEC 60068-2-6)
- Emissivity table/correction
- Emissivity table of predefined materials/variable from 0.1 to 1.0
- Encapsulation/Drop
- IP 54 (IEC 60529)/2m (6.6 ft.)
Imaging & Optical Flir E5-XT
- Camera size (L x W x H)
- 244 x 95 x 140 mm (9.6 x 3.7 x 5.5 in)
- Camera weight incl battery
- 0.575 kg (1.27 lb.)
- Color
- Black and gray
- Color palettes
- Black & white, iron, and rainbow
- f-number
- 1.5
- Field of view (FOV)
- 45° x 34°
- Focus
- Focus free
- Image Adjustment
- Automatic adjust/lock image
- Image Frequency
- 9 Hz
- Image Modes
- Thermal MSX, Thermal, Picture-in-Picture, Thermal blending, Digital camera.
- Minimum Focus Distance
- 0.5 m (1.6 ft.)
- Multi Spectral Dynamic Imaging (MSX)
- IR image enhanced with visible camera detail
- Picture-in-Picture
- IR area on visual image
- Spatial resolution (IFOV)
- 5.2 mrad
- Digital Camera Resolution/FOV
- 640 x 480/55° x 43°
Measurement & Analysis Flir E5-XT
- Accuracy
- ±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F) and object temperature above 0°C (32°F)
- Isotherm
- Above alarm, below alarm
- Object Temperature Range
- -20°C to 400°C (-4°F to 752°F) in two ranges
- Reflected apparent temperature correction
- Automatic, based on input of reflected temperature
- Spot Meter
- Center spot; box with min./max.
- Thermal Sensitivity/NETD
- <0.10°C (0.27°F) /
- Spotmeter and Area
- Center spot; box with min./max.
Meter Data Flir E5-XT
- Display
- 3.0 in. 320 x 240 color LCD
Power Flir E5-XT
- Charging system
- Battery is charged inside the camera or in specific charger.
- Charging Time
- 2.5 hours to 90% capacity in camera. 2 hours in charger.
- Power Management
- Automatic shut-down
- Battery type & operating time
- Rechargeable 3.6 V Li ion battery; approx. 4 hours typical use
Storage Media
- File Formats
- Standard JPEG, 14-bit measurement data included

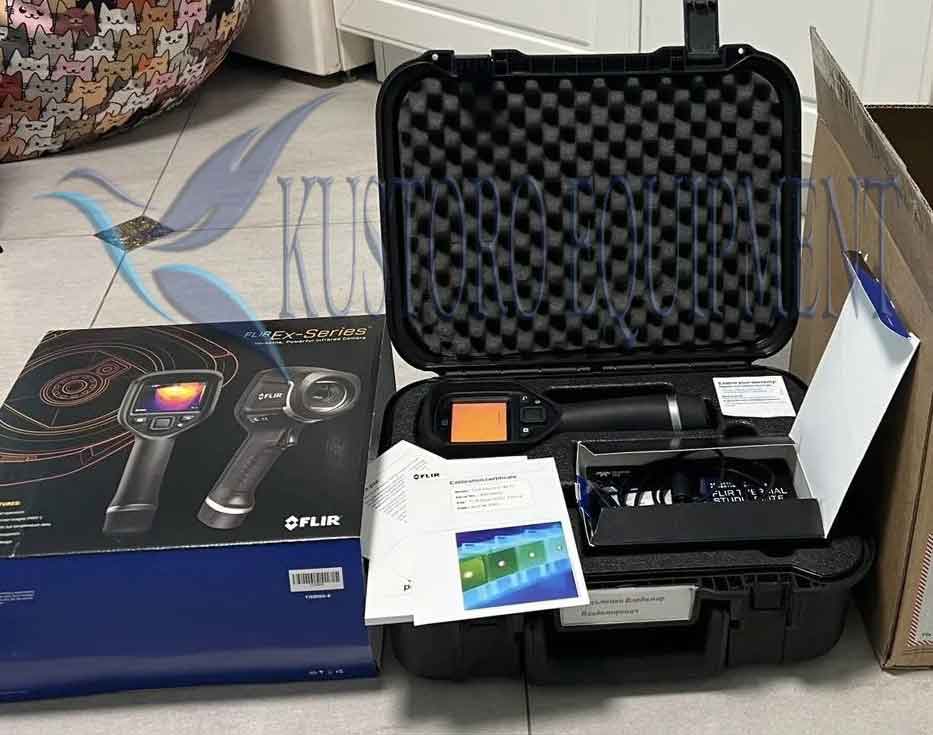

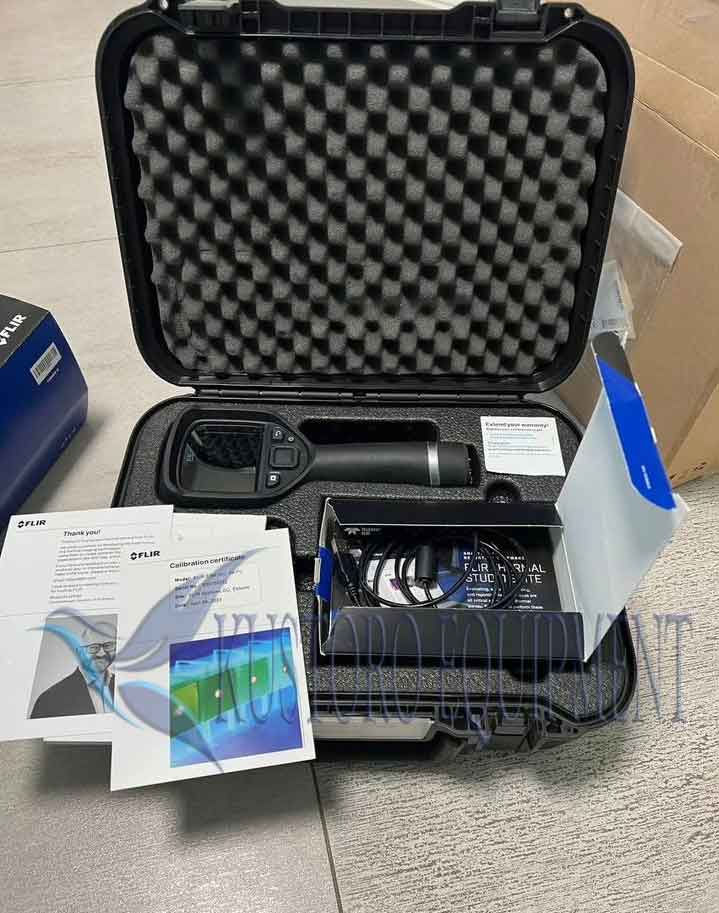

Packaage Includes :
- FLIR E5-XT

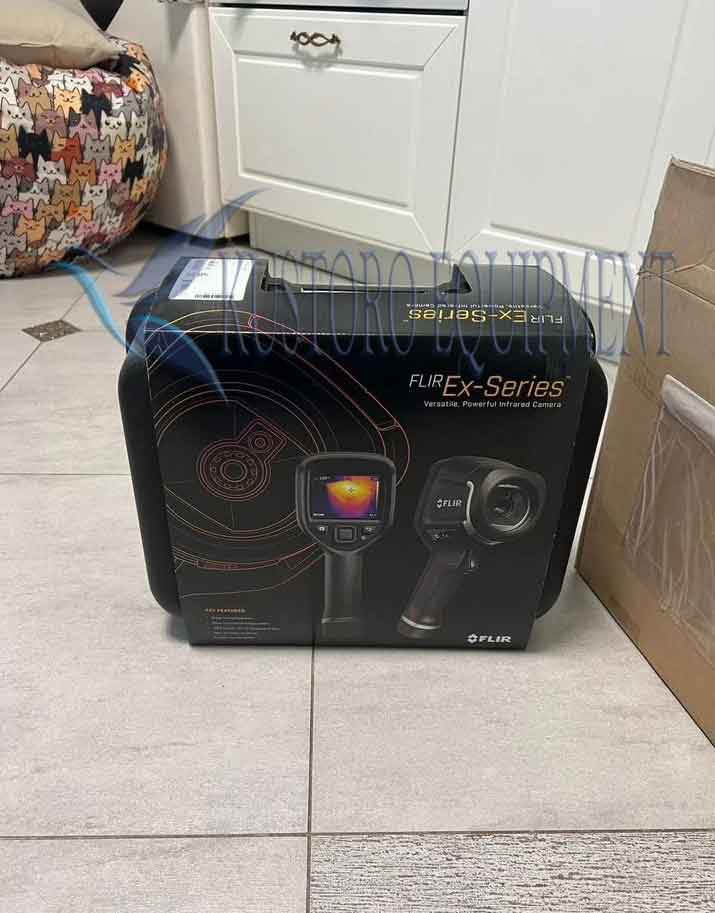

- Hard transport case
- Battery
- USB cable
- Power supply/charger
- Printed documentation
