Description

GE XL GO+ 6mm VideoProbe Visual Inspection Videoscope

GE XL GO+ 6mm VideoProbe™ system is a versatile video borescope that combines portability, durability with high quality imaging technology and measurement to help you make smart decisions fast. Designed with general inspection applications in mind, the XL Vu delivers superior resolution over conventional fiberscopes. Portability
Our XL Vu VideoProbe system provides inspectors with unparalleled access—without a bulky base unit. Weighing as little as 1.77 kg (3.90 lb), the XL Vu VideoProbe system can easily “view anywhere.”

GE’s XL Vu borescope utilizes LED illumination to display excellent image quality. You can save clear, accurate still images and motion video to the internal flash memory or removable USB ThumbDrive™.

Versatility Packed with GE XL GO+ 6mm Features

• StereoProbe* and Comparison indication measurement
• Servomotor All-Way* Probe articulation
• Sealed housings for Dust and Water ingress protection to IP55
• NEW 4.0 mm optics set for improved image quality and far focus general inspection.
• Transflective sunlight readable LCD
• Image and video capture in Full VGA resolution
• Integrated Temperature Warning system
• Probe operates up to 100°C to gain access faster in high temperature applications where cooling time is needed
• Automated inspection reporting and data tagging software (Menu Directed Inspection)
• Live on screen Tip Map aids inspectors in guiding the tip during inspection. A grid shows the tip direction and       helps inspectors maintain orientation or better navigation.
• 4 GB Internal Flash memory
• 2 USB® 2.0 ports, VGA video out, headset/microphone port
• Two or four-hour Li-Ion battery
• Full tip optic interchangeability with secure double threads
• Shipping and storage case with integral probe reel included with system

Redefine Portability

Whether you’re climbing a 100 meter tower to inspect a wind turbine gearbox, crawling atop a refinery heat exchanger or creeping under a turbofan jet engine on a test stand, a portable video borescope is essential.

The XL Go+ VideoProbe system combines portability with performance—delivering sharp, clear digital images on a system designed to meet inspection needs across a wide range of industry applications.

XL Go+ combines cordless operation with a host of features found in systems three times as large. Unlike other video borescopes, the XL Go+ has no bulky base unit, no backpacks, no tethered scopes or power cords to get in the way—ensuring unlimited inspection access and unprecedented ease of use.

Redefine Image Quality

The ultra-compact XL Go+ VideoProbe system doesn’t sacrifice image quality for the sake of portability. Its white LED and crystal–clear active matrix VGA LCD give inspectors the sharp, detailed images needed to ensure accurate detection and analysis, even in applications with poor lighting conditions. The XpertBrightTM LCD has enhanced image quality for better readability in sunny or snowy outdoor environments and harsh indoor lighting. An intuitive user interface makes it easy to save still images or record motion video to the internal flash memory or removable USB® ThumbDrive®.

Redefine Ruggedness

The XL Go+ VideoProbe system is constructed to withstand the rigors of the industrial workplace. Shock absorbing materials and seals are strategically incorporated to resist impact damage and to prevent dust and water intrusion.

Specifications GE XL GO+ 6mm

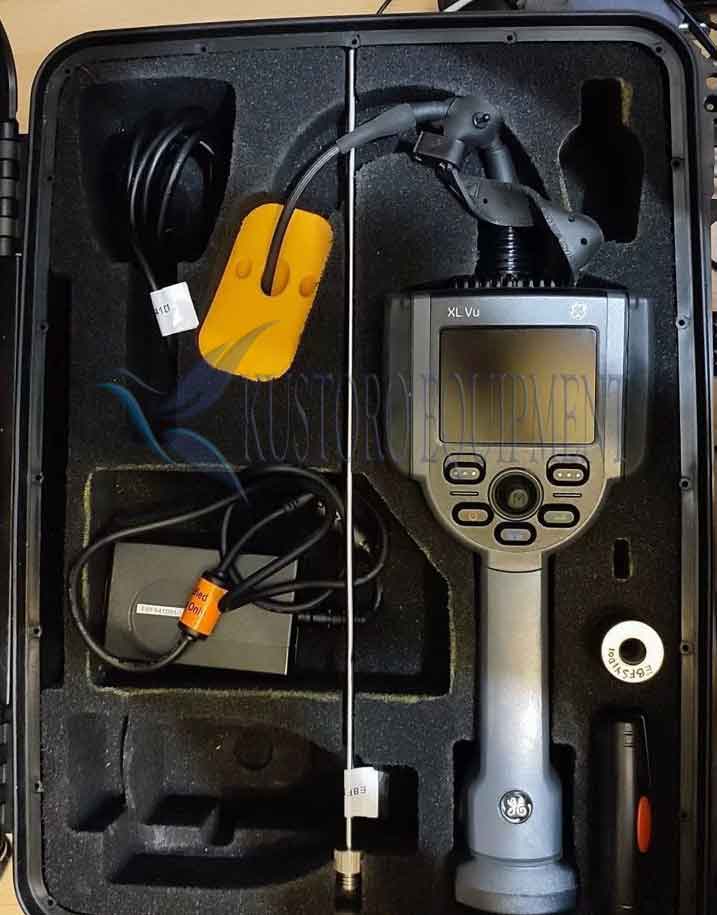

Package Include :

• GE XL GO+ 6mm VideoProbe Visual Inspection Borescope

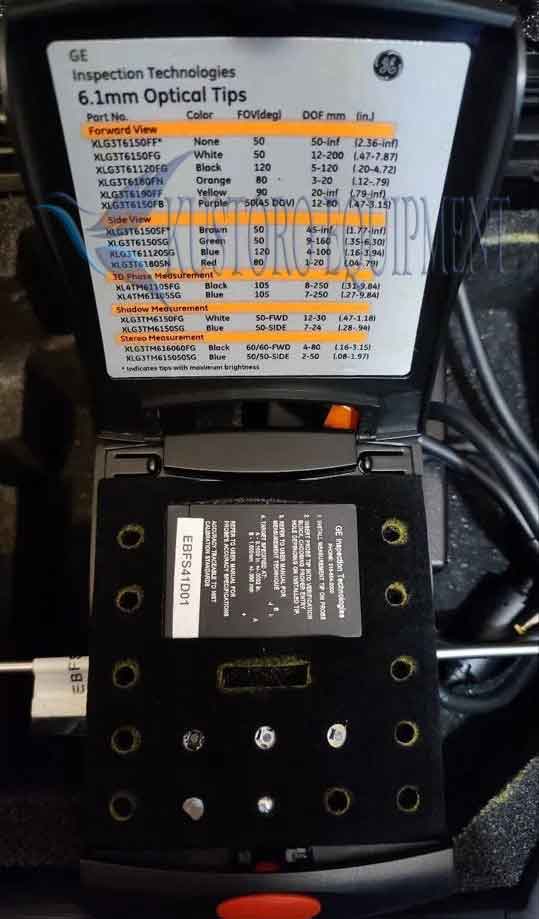

• GE Optical Tip Storage Case w/ Tips & Verification System System 6.1mm
• Transcend External Hard Drive
• GE Rigidizer Tube 16.75″ 6mm
• GE Gripper XA118
• AC Adapter/Charger
• Power Cord
• USB PC Interface Cable
• Hard Copy User Manual
• User Manual On CD-ROM
• Hard Carrying Case
